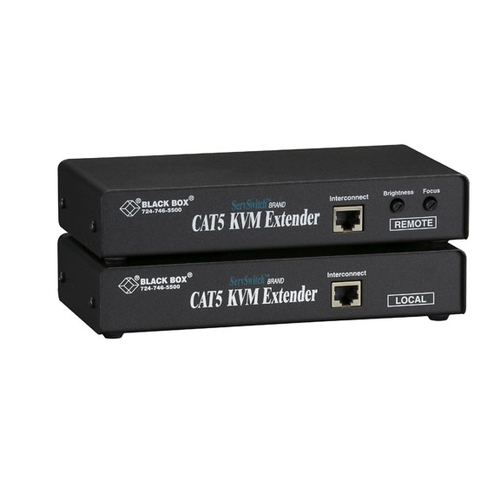

CAT5 KVM Extenders make it easy to put your CPUs and KVM switches where you want them. Because these extenders use flexible, inexpensive Category 5 UTP cable, installation is easy. You may even be able to use the cable already installed in your building!
The extenders feature intelligent keyboard and mouse emulation, so your remote CPUs are in no danger of locking up, even if your keyboard or interconnect cable is unplugged.
The extenders also feature built-in surge protection to defend your CAT5 link side against surges and spikes.
Clamping voltage — 15 Volts
Compatibility — Keyboard: PC/AT, PS/2; Video: VGA, SVGA, XGA; Mouse: PS/2 Mouse only (user)
Resolution (Maximum) — 1600 X 1280: 60.9 m: 1280 X 1024: 91.4 m; 1024 X 768: 304.8 m
ACU1001A: (1) HD15M, (2) 6-pim mini DIN F, (1) RJ45;
ACU1009A: (1) HD15M, (2) 6-pim mini DIN F, (1) RJ45, (2) 6-pin mini DIN F, (1) HD15 F;
ALL: (1) HD15F, (2) 6 pin mini-DIN F (1) 2.5mm centre-positive barrel jack for power
Power — Local units: From the PC; Remote units: 100/240 VAC, 50.60 Hz, external, autosensing with IEC connector (use PSU 1002E-R3 as spare power supply)
Size — 3.6H X 19.8W X 9.9D cm
(1) Cable from CPU to local unit
