These inexpensive, unmanaged Layer 2 media converters easily enable you to extend your 10- or 100Mbps network over 100Mbps fiber optic cable over distances up to 40 kilometers. In addition it adds four ports at the edge of your network.
The converter features an industrial-strength plastic case and complies with IEC 61000-Part 6-2 generic standards for electromagnetic compatibility (EMC) in industrial environments. It offers full wire-speed forwarding rates across the network.
Auto MDI/MDI-X copper port auto-negotiates for 10/100Mbps speed and auto detects full-or half-duplex mode.
The converters can be installed easily on a DIN rail. The mounting kit is included.
Enclosure — Plastic case, IP30 rated
Filtering/Forwarding Rate — Ethernet: 14,880 pps;
Fast Ethernet: 148,800 pps
MAC Addresses — 2K
Operating Temperature — -10 to +60° C
Storage Temperature — -25 to +85° C
Packet Buffer — 384 KB
Switching Processing Type — Store and forward with half-duplex backpressure and IEEE 802.3x full-duplex flow control
All: Ethernet/Fast Ethernet: (4) RJ-45;

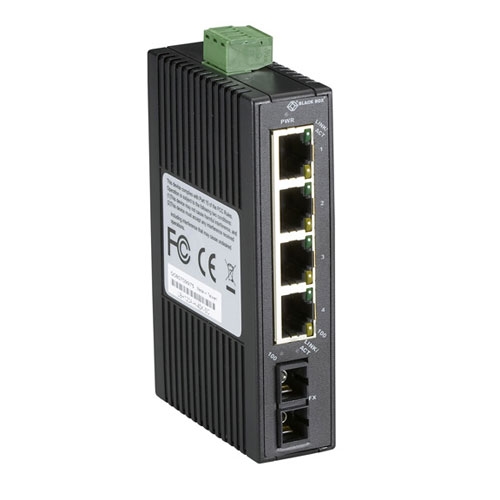

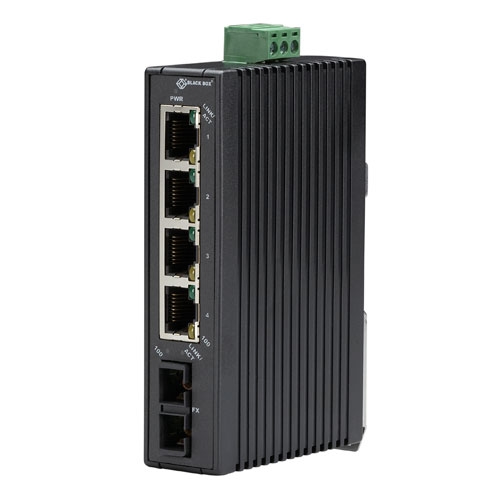

LBH120A-H-SC/ LBH120A-H-20K-SC/ LBH120A-H-40K-SC: (1) pair of SC

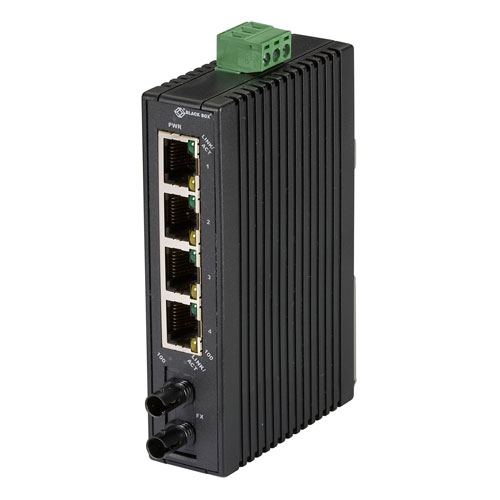

LBH120A-H-ST: (1) pair of ST
Power — Input: 12–48 VDC (terminal block);
Output: Per optional DC or AC power supply ordered
Size — 10.9H x 2.5E x 7.1D cm
Weight — 0.2 kg
