Store home > Networking > Switches > Managed Switches > Gigabit Managed Ethernet Switch INDRy II L
LIG1014A: Web smart / SNMP V1/2/3 / CLI, (10) 10/100/1000Mbps RJ45 + (4) 100/1000Mbps SFP
Photo may vary from actual product
Gigabit Managed Ethernet Switch INDRy II L
Gigabit Managed Ethernet Switch INDRy II L
Gigabit Managed Ethernet Switch INDRy II L
LIG1014A: Web smart / SNMP V1/2/3 / CLI, (10) 10/100/1000Mbps RJ45 + (4) 100/1000Mbps SFP
LIG1014A: Web smart / SNMP V1/2/3 / CLI, (10) 10/100/1000Mbps RJ45 + (4) 100/1000Mbps SFP


Gigabit Managed Ethernet Switch INDRy II L


Managed Gigabit Switch with four flexible fiber uplinks

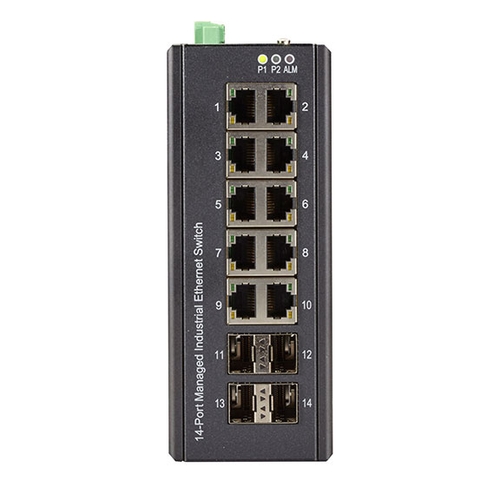

  • Provides ten 10-/100-/1000M copper ports plus four multirate SFP-slots.
  • Fully managed via SNMP, Telnet, HTTPS, and CLI.
  • L2 wire speed switching.
  • 9K jumbo frames.
  • 8K MAC forwarding addresses.
  • High redundancy with network redundant LACP and Spanning Tree (STP/RSTP/MSTP).
  • Reliable with a link loss recovery < 20 ms.
  • State-of-the-art VLAN capabilities and VLAN mirroring.
  • Support 802.1p and TOS/DS Quality of Service with four queues per port.
  • Efficient bandwidth utilization with IGMP v1/v2 to multicast video over the network.
  • Secure with IP-, MAC, and IEEE802.1x access control.

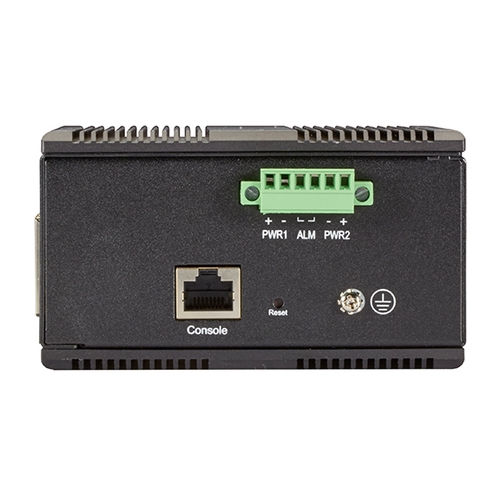

  • IP30 industrial design with an temperature range from -40° to +75°C and dual 12-58 VDC power inputs.
  • Warranty: 1 Year Double Diamond™ Warranty (Standard)

  Product       Code   Unit price   Quantity
Web smart / SNMP V1/2/3 / CLI

(10) 10/100/1000Mbps RJ45 + (4) 100/1000Mbps SFP
  Gigabit Managed Ethernet Switch INDRy II L
Gigabit Managed Ethernet Switch INDRy II L
  LIG1014A
857,00 €


Accessories

  Product     Code   Unit price   Quantity

  SFP, 155-Mbps, Extended Temp., 850-nm MM LC, 2-km - 850nm MM LC, 2km
SFP, 155-Mbps, Extended Temp., 850-nm MM LC, 2-km
  LFP401
58,43 €

  SFP, 1250-Mbps, Extended Temp., 850-nm MM LC, 550-m - 850nm MM LC, 550m
SFP, 1250-Mbps, Extended Temp., 850-nm MM LC, 550-m
  LFP411
58,43 €

  SFP, 1250-Mbps, Extended Temp., 1310-nm MM LC, 2-km - 1310-nm MM, 2km
SFP, 1250-Mbps, Extended Temp., 1310-nm MM LC, 2-km
  LFP412
87,66 €

  SFP, 1250-Mbps, Extended Temp., 1310-nm SM LC, 10-km - 1310nm SM LC, 10km
SFP, 1250-Mbps, Extended Temp., 1310-nm SM LC, 10-km
  LFP413
64,48 €

  SFP, 1250-Mbps, Extended Temp., 1310-nm SM LC, 30-km - 1310nm SM LC, 30km
SFP, 1250-Mbps, Extended Temp., 1310-nm SM LC, 30-km
  LFP414
141,00 €

  SFP, 155-Mbps, Extended Temp., 1300-nm MM LC, 2-km - 1310-nm MM, 2km
SFP, 155-Mbps, Extended Temp., 1300-nm MM LC, 2-km
  LFP402
57,43 €

  SFP, 155-Mbps, Extended Temp., 1310-nm SM LC, 30-km - 1310nm SM LC, 30km
SFP, 155-Mbps, Extended Temp., 1310-nm SM LC, 30-km
  LFP403
70,34 €

  SFP, 1250-Mbps, Extended Temp., SerDes Interface RJ-45, 100-m - SerDes
SFP, 1250-Mbps, Extended Temp., SerDes Interface RJ-45, 100-m
  LFP415
85,11 €

  SFP, 1250-Mbps, Extended Temp., SGMII Interface RJ-45, 100-m - SGMII
SFP, 1250-Mbps, Extended Temp., SGMII Interface RJ-45, 100-m
  LFP416
87,66 €

  SFP, 1250-Mbps, Extended Temperature, LC Simplex - 10km, LC, Singlemode SSF 1310nm TX/1550nm RX
SFP, 1250-Mbps, Extended Temperature, LC Simplex
  LFP421
90,30 €

  SFP, 1250-Mbps, Extended Temperature, LC Simplex - 10km, LC, Singlemode SSF 1550nm TX/1310nm RX
SFP, 1250-Mbps, Extended Temperature, LC Simplex
  LFP420
101,00 €
