A converter that can take an Ethernet network from copper to fibre is one of the most frequently needed devices today. The process seems easy enough; just plug in the RJ-45 for the copper connection, then plug in the fibre connectors and your connector is ready to go!
With the XS Media Converters it really is as easy as that, since the conversion mode and method are set up automatically. Select from a wide variety of converters for Multimode or single mode operation. You may even choose a model with a flexible SFP slot that can take multimode or single mode LX/SX SFP modules. The XS Media Converters feature an aesthetically pleasing design and informative LEDs that show you the status of your link.

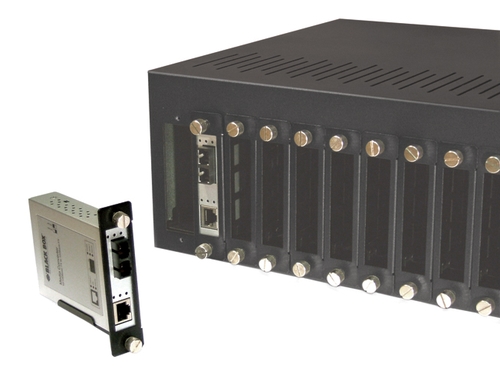

You can use the XS Media Converters "right out of the box" as a standalone device, or you can order a wall or DIN rail mounting kit (sold separately) or even a 16-slot rack chassis. For additional reliability and stability, add a redundant power supply for the 16-slot rack chassis.
Data Transfer Rate —
LMCS212AE-xx: 1000 Mbps @ converter mode
LGE217AE : 10/100/1000Mbps switched
Up to 100 m for 100BASE-T CAT5, CAT5e, or CAT6 twisted-pair cable;
Up to 220 m for MMF 62.5/125 µm;
Up to 550 m for MMF 50/125 µm;
Up to 10 km for SMF 9/125 µm
LMC203AE-SC20 Up to 20 km for SMF 9/125 µm
Media Support —
1000BASE-TX CAT5, 5e or 6 UTP/STP;
1000BASE-SX multimode 50/125µm and 62.5/125µm;
1000BASE-LX Single-mode 9/125 µm
1000BASE-ZX Single-mode 9/125 µm
Certifications — FCC Class A, CE Mark
LMCS202AE-SC/ST: (1) RJ45; (2) SC or ST MM;
LMCS203AE-SC20: (1) RJ45; (2) SC SM;
LMCS212AE-SC-R2: (1) RJ45; (2) SC MM;
LMCS212AE-SC10-R2: (1) RJ45; (2) SC SM;
LGE217AE: (1) RJ45; (1) SFP Slot
Indicators — LEDs:System: power; 1000BASE-T port: Link, FDX, and TX LEDs; Fibre port: Link and RX LEDs
all converters: external international power supply 5V DC 1.4A; consumption 4.8 watts (max.)
LME1600E chassis: internal power supply 90 to 260 VAC
Temperature — 0 to 45° C
Humidity — 10% to 90% (non-condensing)
all converters: 10.2L x 7.4W x 2.2H cm
chassis LME1600E: 30L x 44W x 13,2H
