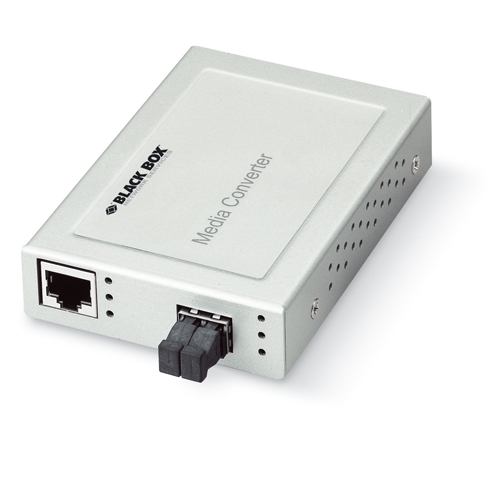

These media converters are designed to bridge a 10/100BASE-T signal to a 100BASE-FX signal. Use them to extend the connection distance between two Fast Ethernet twisted-pair devices via fibre cable transparently with no performance degradation.
This converter series is based on a switching hub design. It supports auto negotiation and flow control functions on the twisted-pair port. Different types of fibre connectors are available: SC and ST for multimode or SC for single-mode cables.
The XS Media Converters feature an aesthetically pleasing design and informative LEDs that show you the status of your link.
You can use the XS Media Converters "right out of the box" as a standalone device, or you can order a wall or DIN rail mounting kit (sold separately) or even a 16-slot rack chassis. For additional reliability and stability, add a redundant power supply for the 16-slot rack chassis.
Data Transfer Rate — 10 or 100 Mbps
Distances Supported —
Twisted pair STP: 100m;
Multimode fibre: half-duplex: 415m; Full duplex: 2km;
Single-mode fibre: half-duplex: 415m; Full duplex: 20km
Media Support —
10BASE-T: EIA/TIA 568 CAT3, 4, 5, 5e, or 6 UTP/STP;
100BASE-TX: EIA/TIA 568 CAT5, 5e, or 6 UTP/STP;
100BASE-FX: Multimode 50/125 µm & 62.5/125 µm;
100BASE-FX: Single-mode 9/125 µm
Wavelength — 1310 nm on single-/multimode
Indicators — LEDs: System power, Twisted-pair port, Link/Activity, Speed and FDX/Col; Fibre port: Link/Activity & FDX LEDs
Standards — IEEE 802.3u 10BASE-T/100BASE-TX and 100BASE-FX
Certifications — FCC Class A, CE Mark
Power Requirement — external international power supply, 5V DC 1A; consumption 3,4 watts max.
Operating Temperature — 0 to 45° C
Humidity — 10% to 90% (non-condensing)
Size — 10.2L x 7.4W x 2.2H cm
Weight — 0.2 kg (without power adaptor)
• Power supply
