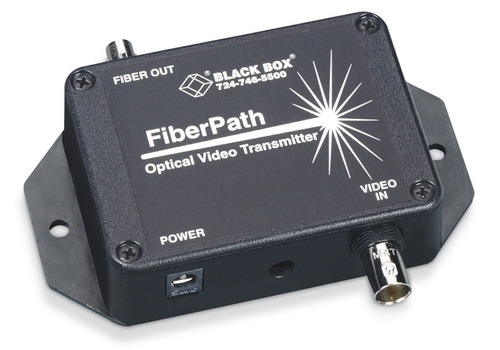

FibrePath is the cost-effective way to transmit video over fibre. It transmits clean, crisp colour or black-and-white video signals over standard multimode fibre optic cable. The FibrePath is ideal for both indoor and outdoor industrial environments.
Your video camera can be up to 2.4 kilometres from your video monitor. Just attach your CCTV camera or other video source to the receiver with standard coax cable. The FibrePath is compatible with all standard analogue video formats, including PAL, SECAM, and NTSC.
To install the FibrePath, connect terminated fibre optic cable between the transmitter and receiver. Once installed, the FibrePath operates for years to come!
Distance (Maximum) — 2.4 km
Optical Loss Budget — 12 dB minimum
Optical Wavelength — 850 nanometers
Connectors — (1) 62.5 µm multimode ST®, (1) BNC coax
AC444AE includes (2) external adaptors; input: 230 VAC, 50 Hz; output: 9 VDC, 500 mA
AC444A: 115-VAC, 60-Hz wallmount adapter
Size — 2.7H x 8.47W x 10.6D cm
NOTE: The transmitter and receiver must be used in pairs. A replacement transmitter (AC445A-TX) and receiver (AC446A-RX) are available separately.

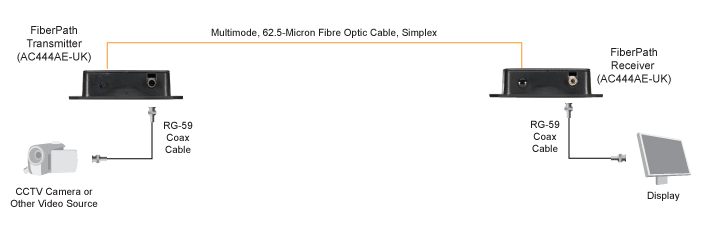

Application diagram - Download GIF
(2) Power supplies
No power supply included
