CATx Video Splitter - 1x4
Photo may vary from actual product
VS-HDB-1X4: HDMI 1.4
VS-HDB-1X4: HDMI 1.4
VS-HDB-1X4: HDMI 1.4
VS-HDB-1X4: HDMI 1.4


CATx Video Splitter - 1x4


Split a single HDMI input into 4 CATx outputs

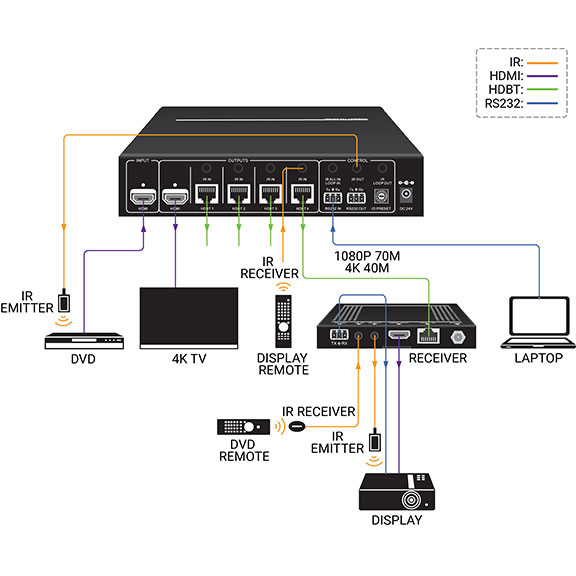

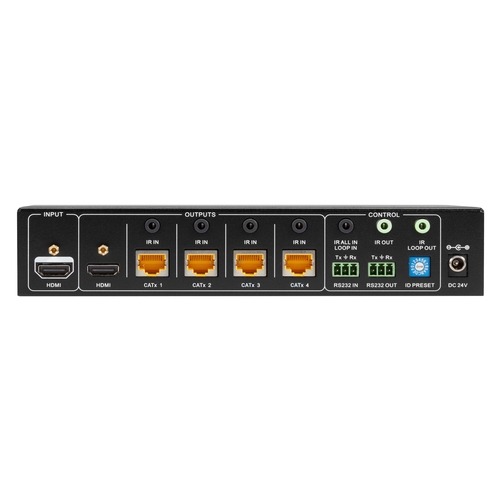

  • Splits a single HDMI input to (4) CATx outputs and (1) HDMI loop output.
  • Supports video resolutions up to 4K @ 60-Hz 4:2:0.
  • Extends 1080p signals on each output to a distance up to 70 meters and 4K signals to a distance up to 40 meters, over a CATx ethernet cable.
  • Supports the power over CATx (PoC) feature, allowing the compatible CATx receivers to be power by the splitter of the ethernet cables.
  • Supports bidirectional IR and RS232 pass-through and loop out.
  • Smart EDID management, features DIP switch to select the output resolution to match the connected displays.
  • Fully compliant with the HDMI 1.4 specification.
  • Supports HDCP pass-through management.
  • Supports firmware update.

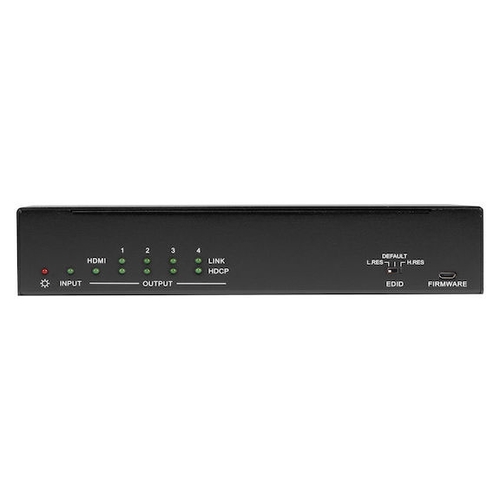

  • Intuitive indicator for connection status.
  • Warranty: 2 Year Double Diamond™ Warranty (Standard)

Share |
  Product       Code   Unit price   Stock   Quantity


HDMI 1.4
  CATx Video Splitter - 1x4
CATx Video Splitter - 1x4
  VS-HDB-1X4
640,00 €


Accessories

  Product     Code   Unit price   Stock   Quantity

  High Speed HDMI Cable with Ethernet - Video Cable, HDMI with Ethernet, M/M, 1m
High Speed HDMI Cable with Ethernet
  VCB-HDMI-001M
8,60 €
  99+
  High Speed HDMI Cable with Ethernet - Video Cable, HDMI with Ethernet, M/M, 2m
High Speed HDMI Cable with Ethernet
  VCB-HDMI-002M
10,87 €
  33
  High Speed HDMI Cable with Ethernet - Video Cable, HDMI with Ethernet, M/M, 3m
High Speed HDMI Cable with Ethernet
  VCB-HDMI-003M
12,68 €
  20
  High Speed HDMI Cable with Ethernet - Video Cable, HDMI with Ethernet, M/M, 5m
High Speed HDMI Cable with Ethernet
  VCB-HDMI-005M
17,67 €
  96
