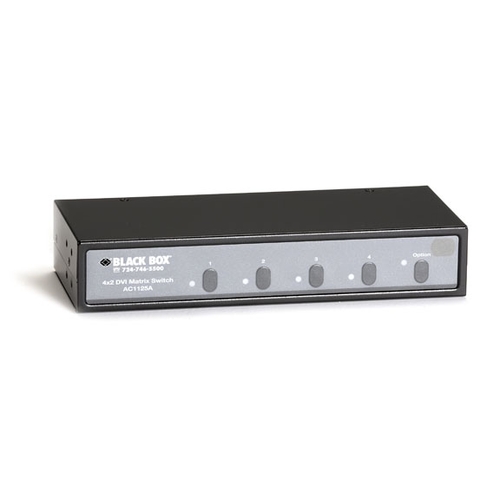

The 4x2 DVI/Audio Matrix Switch routes 4 different DVI and audio signals to 2 different DVI monitors and speakers. Switching is quick and easy using using buttons on the front panel, with a PC connected via its RS-232 port, or by using the wireless remote control from up to 5 m away.
Each output of the matrix switch provides one video signal and one audio signal so that you may turn the video and audio on or off at each individual port. The switch also features Auto Scan and selectable scan time intervals. System settings are automatically retained to recover your previous settings after power blackouts.
Ideal for digital signage display systems where you want to switch source inputs for screen output on various screens.
Automatic Scan Interval — 8, 15, 30, 45 seconds
DVI Cable Length (Maximum) — 5 m
Operating Temperature — 5 to 40° C
Resolution Supported (Maximum) — 1600 x 1200 at 60 Hz

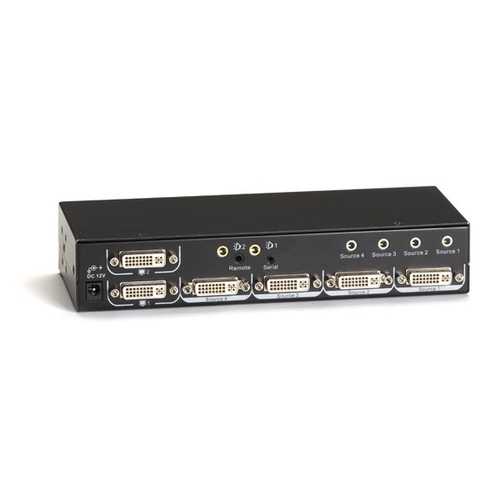

Video: Input: (4) DVI-D;
Output: (2) DVI-D;
Audio: Input: (4) 3.5mm stereo jacks;
Output: (2) 3.5mm stereo jacks
Power — 100 to 240 VAC, 50 to 60 Hz, autosensing external power supply
Size — (1U) 4.1H x 22W x 9.7D cm
Weight — 0.7 kg

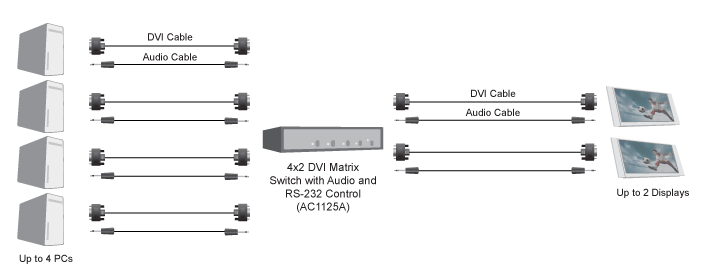

Application diagram - Download GIF
(1) Remote control
(1) IR Extension kit
(1) Power adapter
(1) AC cord
(1) set of rubber footpads
