This low-cost, high-quality video extender is perfect for short distances and limited budgets. It enables you to place a CPU in a remote environment that is more secure or cleaner than where you work. Place a keyboard, monitor, and mouse up to 22 m from a computer or KVM switch.
The short range extender kits connects the computer unit and console (station) unit via inexpensive Category 5 UTP cable. A hotkey adjusts video compensation for optimum signal quality for any length of cable within the limit. The LED indicator ensures smooth operation and beep sound confirms key control.
Resolution — 1280 x 1024 @ 22 m

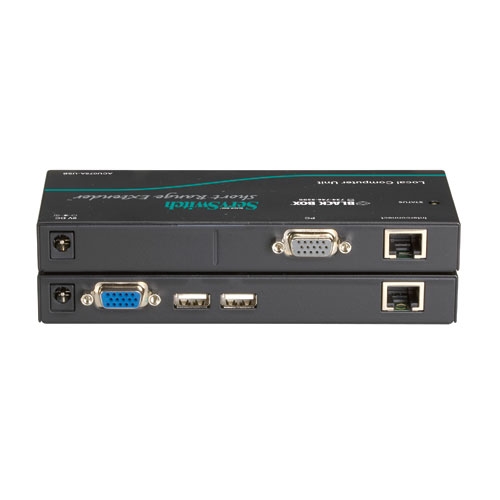

Console (Station) Unit: (1) HD15 F, (1) RJ-45, (2) USB Type A F, (1) barrel connector
Computer Unit: (1) HD15 F, (1) RJ-45, (1) barrel connector
Indicators — Console (Station) Unit: (1) On LED; Computer Unit: (1) On LED
Power — External 9-VDC, 600 mA power supply
Size — 2H x 15.6W x 6.5D cm
Weight — Each transmitter or receiver unit: 0.3 kg

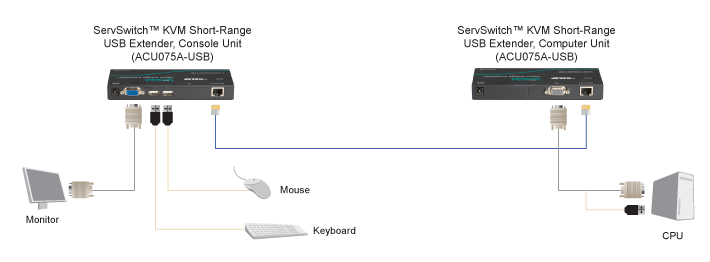

Application diagram - Download GIF
(1) KVM Extender Console (Station) Unit,
(1) KVM Extender Computer Unit,
(1) 9-VDC, 600-mA power adapter,
(2) sets of foot pads,
(1) KVM Cable 2-to-1 (EHN9000U-0006),
