Manage up to eight DVI/USB servers from a single DVI/USB console with this simple plug-and-play KVM switch.
Ideal for applications where you have a limited amount of space, the 1U-high 8-port resp. 2U 16-port DVI switch can be used on the desktop or mounted in a rack or cabinet.
Switch between servers using front-panel buttons or hotkeys. Or you select the Autoscan function for automatic switching, the ServSwitch EC will scan and switch between servers, one by one, at an interval that you determine. When Autoscan detects any keyboard or mouse activity, it suspends the scanning until activity stops and then resumes with the next computer in sequence.
Set It And Forget It
System settings are stored in nonvolatile memory so you don’t have to worry about a power outage wiping out your information. The ServSwitch EC also saves your keyboard settings for each server and restores them when you come back to that machine.

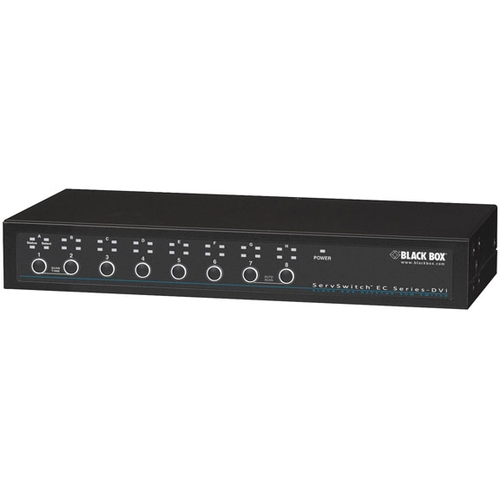

The front panel includes port LEDs, which light with the corresponding active port when you switch between servers.
With video enhancement technology that ensures superb quality and resolutions up to 1920 x 1200, the ServSwitch EC is DDC2B compatible, so you can use it with the latest digital monitors. What’s more, the switch is operating-system independent and transparent to all applications.
Autoscan Intervals — 3, 8, 15, and 30 seconds
Cable Length (Maximum) —
At console: 4.5 m;
At PC ports for USB server: 4.5 m
Operating Systems Supported — Windows® 98/Me/Windows XP®, Windows NT®, Windows 2000, Windows Vista®, Windows 7, Mac OS®
Resolution (Maximum) — 1920 x 1200
User Controls — (8) port selection buttons

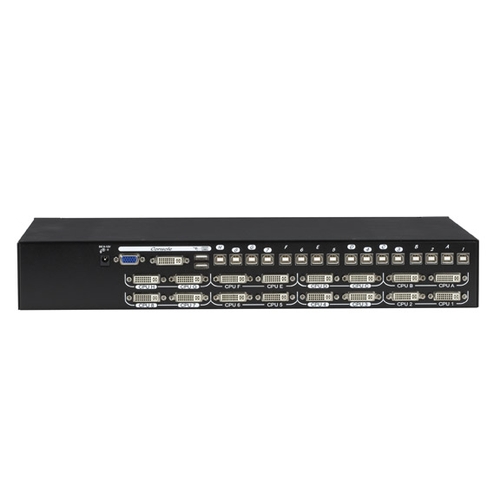

Server: (8) or (16) DVI-I (digital only), (8) or (16) USB Type B F;
Console: Keyboard/Mouse: (2) USB Type A F;
Monitor: (1) DVI-I F (digital only)
Indicators — LEDs: (2) per port, (1) power per unit
Power — External power supply: Input; 100 to 240 VAC, 50 to 60 Hz; Output: KV9508A: 9 VDC, 2A, KV9516A: 12VDC, 4A
KV9508A: (1U) 4.4H x 43.8W x 18D cm (1.75"H x 17.25"W x 7"D)
KV9516A: (2U) 6.6H x 43.8W x 22.9D cm (2.6"H x 17.25"W x 9"D)
KV9508A: 2.3 kg
KV9516A: 3.8 kg
(1) EC KVM Switch
(1) AC power adapter
(1) 1.8m. power cable
(4) Foot pads
(2) Mounting brackets
Assortment of screws
