Accessories

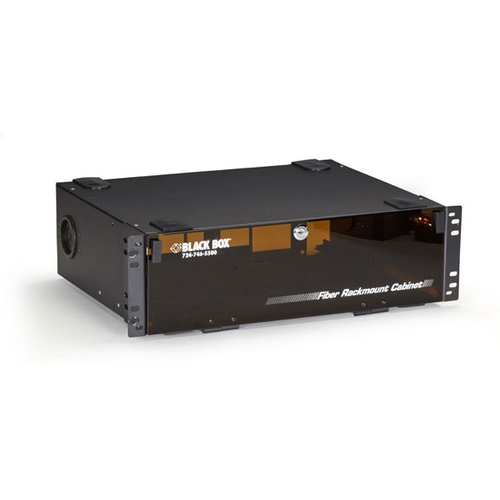

Rackmount Fibre Panels

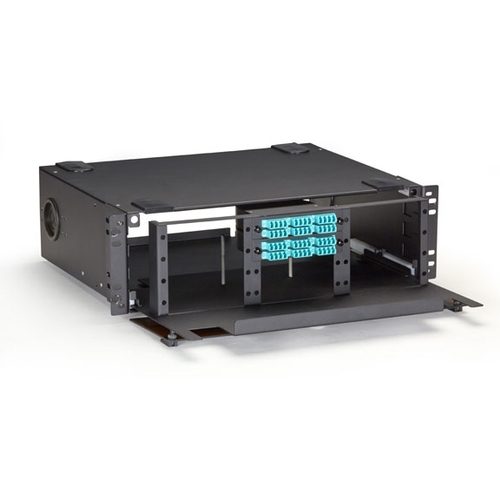

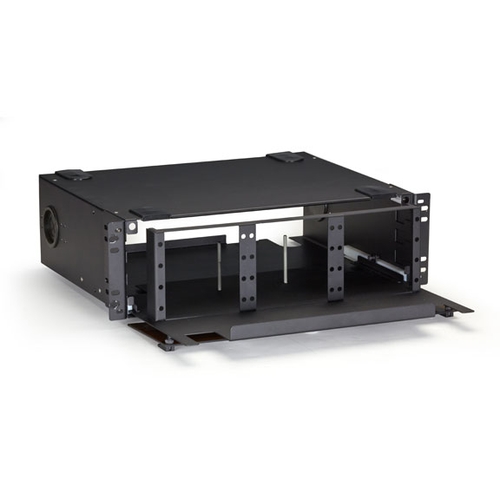

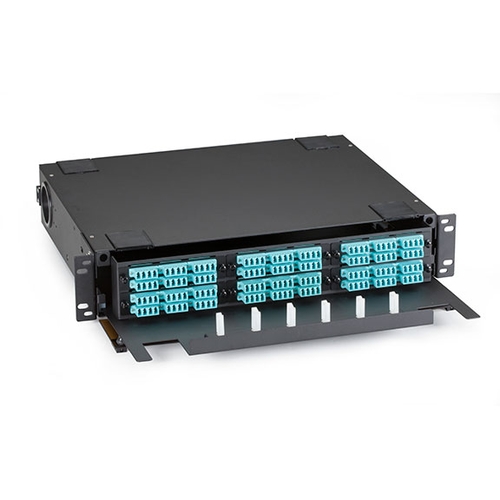

Satisfy your requirements for maximum flexibility and high-density terminations with these cabinets for your 19" or 23" rackmount fiber applications. Just snap in up to 6, 9, or 12 adapter panels.

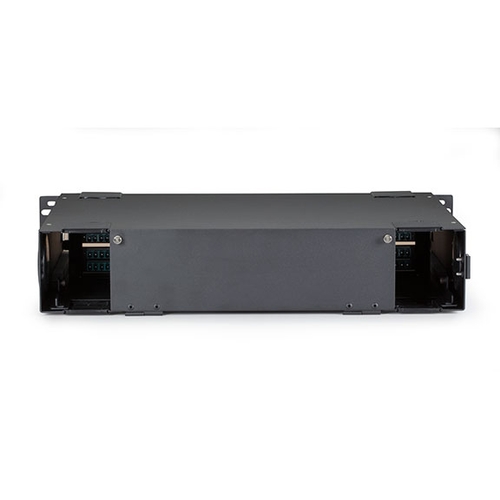

Smoked-plastic front covers protect your patch cords from dust and dirt, and make it easy to view connections. And because the front covers are lockable, you can keep your panel connections secure. A removable rear cover makes patch cords and pigtails accessible.
All models come with adjustable rackmount brackets for easy installation.
Rackmount Fiber Shelf

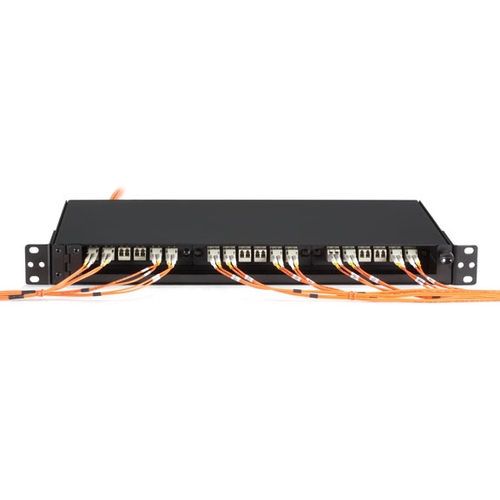

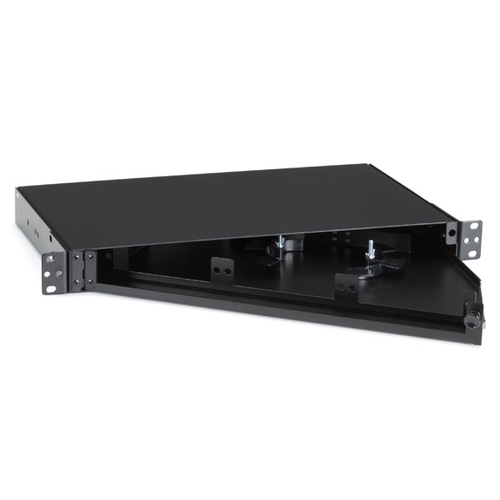

With this shelf, you can organize and protect fiber connections and splice trays in your 19" or 23" rackmount fiber applications. This shelf is particularly useful in cabinets and racks where little space is available. It accepts three snap-in Adapter Panels or MPO Cassettes for connections. The cable punchouts are aligned for easy stacking of shelves. Plus, fiber Kevlar clamps on the outside rear hold the fiber in place as it enters the box.

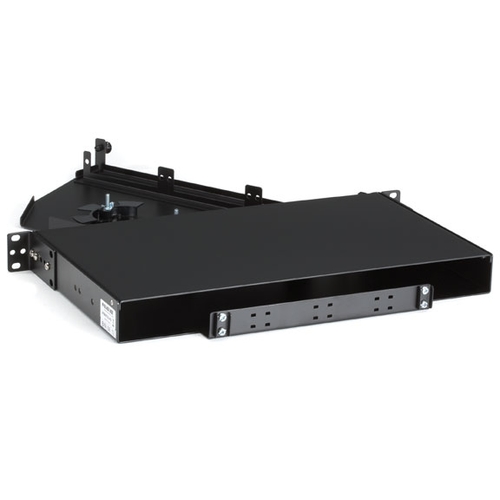

The adapter panels are recessed horizontally in the swing-out tray for superior patch cord protection. A splice tray stud enables you to install pigtail splice trays.
The Rackmount Fiber Shelf comes with rackmount brackets that are adjustable for mounting in cabinets and two-post racks. They're set for 19" racks but can be reversed for use in 23" racks.
Material — 16-gauge cold-rolled steel
Dimensions —
JPM407A: 4.4H x 43.2W x 27.9D cm;
JPM418A: 8.9H x 43.2W x 27.9D cm;
JPM406A-R6: 13.3H (3U) x 43.2W x 34.8D cm
JPM407A-R5
(1) Rackmount Fiber Shelf
(4) 10-32 cuphead screws
(4) 12-24 cuphead screws
(4) 10 cm (4-inch) cable ties
(30) 7.5 cm (3-inch) cable ties
Red “danger” sticker that warns you of laser hazard
(6) 2.5 cm (1-inch) stick-on rectangular cable holders
Pair of black spool rings for cable management
User’s manual
JPM418A-R5

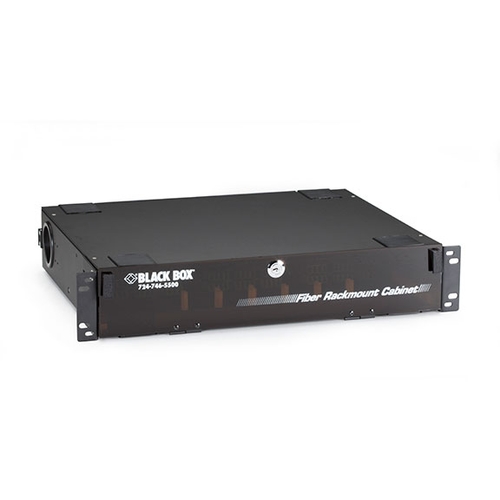

(1) Fiber Rackmount Cabinet
(4) 12-24 cuphead screws
(4) 10-32 cup-head screws
(30) 3" (7.6-cm) cable ties
(4) 4" (10.2-cm) cable ties
(6) rectangular plastic cable holders
(2) pairs of black spool rings
(1) “DANGER” sticker
(1) locking PLEXIGLAS® door
(2) mounting brackets
(4) silver screws for mounting brackets
(4) washers for mounting brackets
(1) set of keys
(1) identification label sticker
(1) user’s manual
