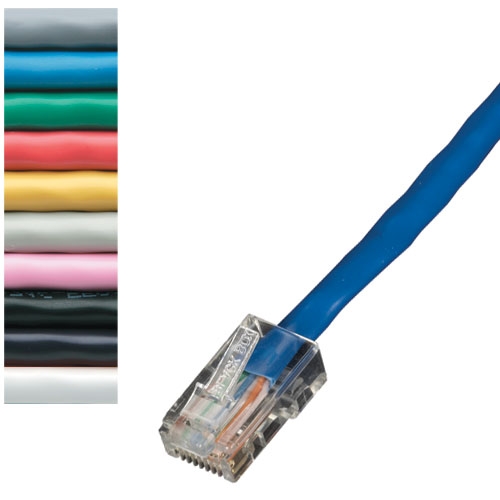

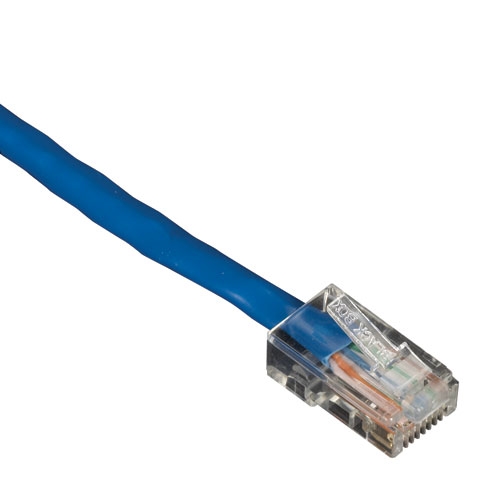

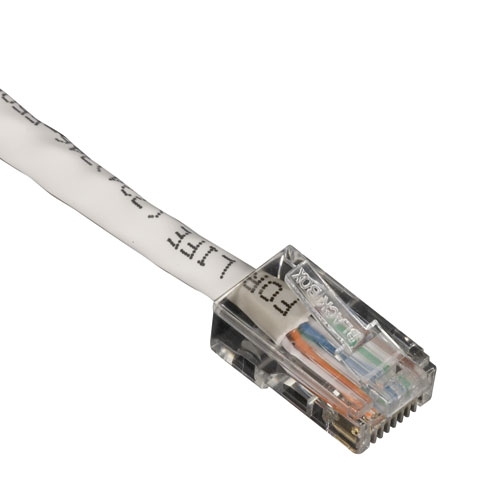

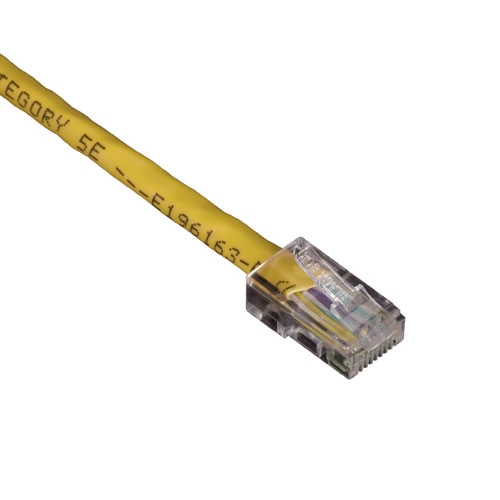

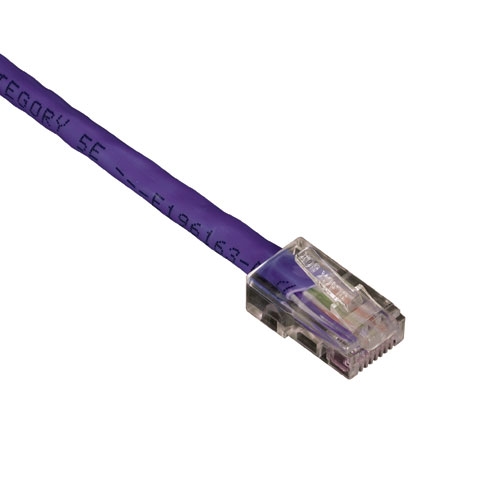

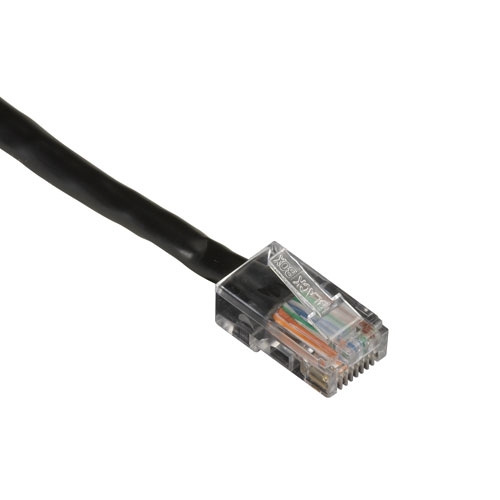

These cables are tested to 350 MHz and are specially designed for use with other GigaBase® Components.Specifications meet or exceed current CAT5e standards and the cables have stranded conductors for optimized flexibility.Superior construction offers significant headroom, tuned-plug design maintains a tighter twist and reduces noise.Enhanced performance parameters and electrical characteristics.Improved near-end crosstalk (NEXT) compared to standard Category 5e cable.Quantity discounts and 25-packs are available upon request.
Attenuation (Maximum) — 24.2 dB/100 m @ 100 MHz; 49.3 dB/100 m @ 350 MHz
Cable Type — 4-pair UTP
Conductor Gauge — 24 AWG, stranded, tinned copper
Frequency — Up to 350 MHz
Impedance — 100 ± 15 ohms
NEXT (Minimum) — 40.3 dB/100 m @ 100 MHz; 32.2 dB/100 m @ 350 MHz
PS-NEXT (Minimum) — 38.3 dB/100 m @ 100 MHz; 30.2 dB/100 m @ 350 MHz
Return Loss (Minimum) — 20.1 dB/100 m @ 100 MHz; 16.3 dB/100 m @ 350 MHz
Standards — TIA/EIA-568-B.2 Category 5e
Bulk discounts are available for this product!
In the table below you will find detailed information regarding the discount you will receive when ordering larger quantities of this product. Place the items in your shopping basket to calculate the discount.
