Home > KVM > Extender > DisplayPort Extender > Agility KVM over IP Fiber Extender - Dual-Monitor, DisplayPort, USB 2.0
Agility KVM over IP Fiber Extender - Dual-Monitor, DisplayPort, USB 2.0
Abbildung ähnlich

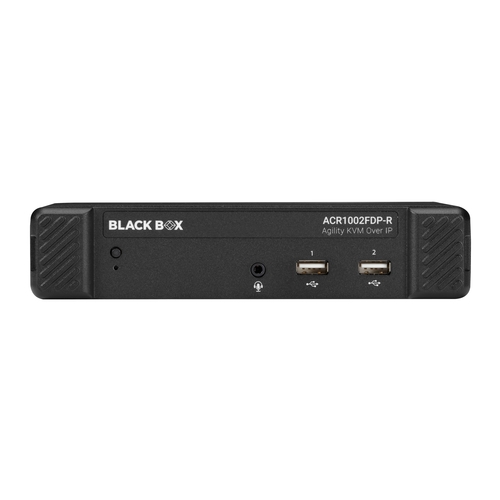

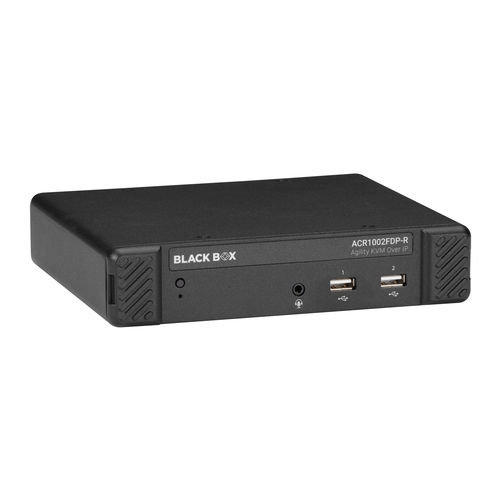

ACR1002FDP-R: Receiver, (2) Single-Link oder (1) Dual-Link DVI, 2xDVI-D, Audio, USB 2.0, RS232
ACR1002FDP-R: Receiver, (2) Single-Link oder (1) Dual-Link DVI, 2xDVI-D, Audio, USB 2.0, RS232
ACR1002FDP-R: Receiver, (2) Single-Link oder (1) Dual-Link DVI, 2xDVI-D, Audio, USB 2.0, RS232

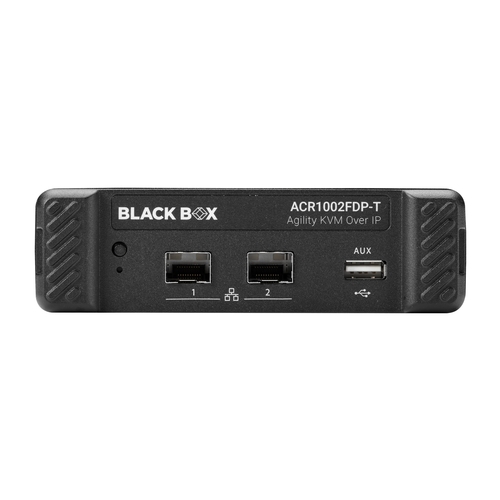

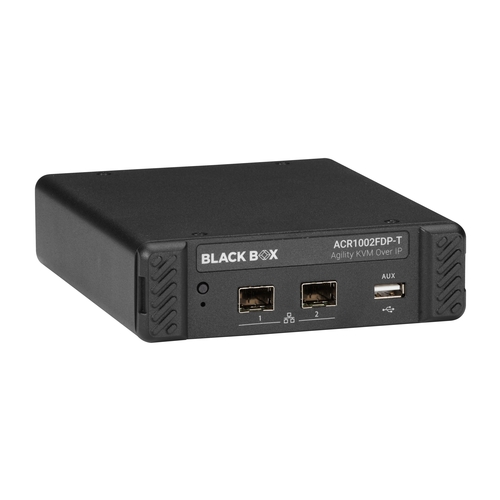

ACR1002FDP-T: Sender, (2) Single-Link oder (1) Dual-Link DVI, 2xDVI-D, Audio, USB 2.0, RS232
ACR1002FDP-T: Sender, (2) Single-Link oder (1) Dual-Link DVI, 2xDVI-D, Audio, USB 2.0, RS232
ACR1002FDP-T: Sender, (2) Single-Link oder (1) Dual-Link DVI, 2xDVI-D, Audio, USB 2.0, RS232
ACR1002FDP-T: Sender, (2) Single-Link oder (1) Dual-Link DVI, 2xDVI-D, Audio, USB 2.0, RS232


Agility KVM over IP Fiber Extender - Dual-Monitor, DisplayPort, USB 2.0


Delivers pixel-perfect dual-head DisplayPort video up to 2560 x 1600 at 60 Hz, audio, and USB 2.0 over one fiber connection.


  • Supports fiber at up to 1 GbE using optional SFP modules (1 SFP included, optional SFP for the second slot is not included)
  • Achieves DisplayPort resolutions of (1) 2560 x 1600 @ 60 Hz or (2) 1920 x 1200 @ 60 Hz
  • Provides bi-directional analog audio (with combined headset jack on the receiver)
  • Includes USB True Emulation for fast switching
  • Works with advanced diagnostic and troubleshooting tools
  • Plug-and-play

  Produkt       Art.Nr.   Stückpreis   Menge
Receiver
(2) Single-Link oder (1) Dual-Link DVI

2xDVI-D, Audio, USB 2.0, RS232
  KVM over IP Fiber Extender Receiver - Dual-Monitor, DisplayPort, USB 2.0
KVM over IP Fiber Extender Receiver - Dual-Monitor, DisplayPort, USB 2.0
  ACR1002FDP-R
Auf Anfrage

Sender
(2) Single-Link oder (1) Dual-Link DVI

2xDVI-D, Audio, USB 2.0, RS232
  KVM over IP Fiber Extender Transmitter - Dual-Monitor, DisplayPort, USB 2.0
KVM over IP Fiber Extender Transmitter - Dual-Monitor, DisplayPort, USB 2.0
  ACR1002FDP-T
Auf Anfrage


Zubehör

  Produkt     Art.Nr.   Stückpreis   Menge

  DisplayPort-Kabel 4K60Hz DP Version 1.2, Stecker/Stecker mit Verriegelungen - Videokabel, DisplayPort zu DisplayPort, Stecker/Stecker, 1,8m
DisplayPort-Kabel 4K60Hz DP Version 1.2, Stecker/Stecker mit Verriegelungen
  VCB-DP2-0006-MM-R2
13,46 €

  USB 2.0 Kabel - Typ A/B, Stecker/Stecker, 1,8m
USB 2.0 Kabel
  USB05-0006
4,80 €

  DisplayPort-Kabel 4K60Hz DP Version 1.2, Stecker/Stecker mit Verriegelungen - Videokabel, DisplayPort zu DisplayPort, Stecker/Stecker, 0,9m
DisplayPort-Kabel 4K60Hz DP Version 1.2, Stecker/Stecker mit Verriegelungen
  VCB-DP2-0003-MM
11,70 €

  SFP, 1250-Mbps, SGMII - 100m, RJ-45, CATx
SFP, 1250-Mbps, SGMII
  LFP443
70,52 €

Netzteile
  Ersatz/Redundantes Netzteil 100-240VAC/0,7A; 12VDC/1,5A
Ersatz/Redundantes Netzteil 100-240VAC/0,7A; 12VDC/1,5A
  PS656
108,00 €

Montagekits
  19" Rackmontagekit 1HE für je ein Gerät
19" Rackmontagekit 1HE für je ein Gerät
  RMK2004
65,17 €

  KVM Rackmount Kit für 2 Geräte
KVM Rackmount Kit für 2 Geräte
  RMK2104
143,00 €

  SFP, 1250-Mbps - LC, MM 850nm, 550m
SFP, 1250-Mbps
  LFP441
28,51 €

  SFP, 1250-Mbps - LC, Singlemode 1310nm, 20km
SFP, 1250-Mbps
  LFP442
32,41 €
