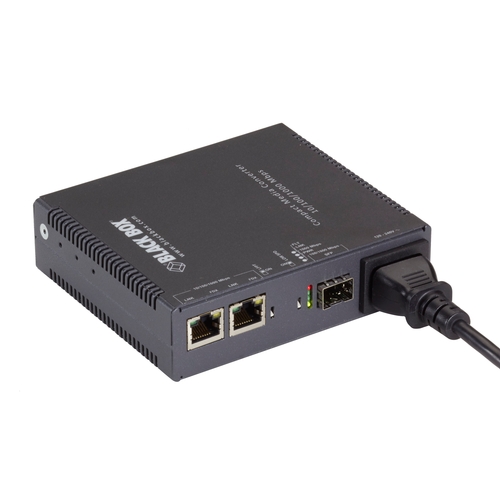

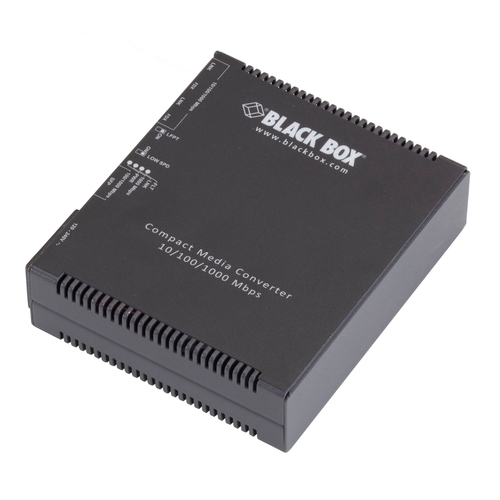

Compact 2-Port Gigabit Media Converter
Abbildung ähnlich

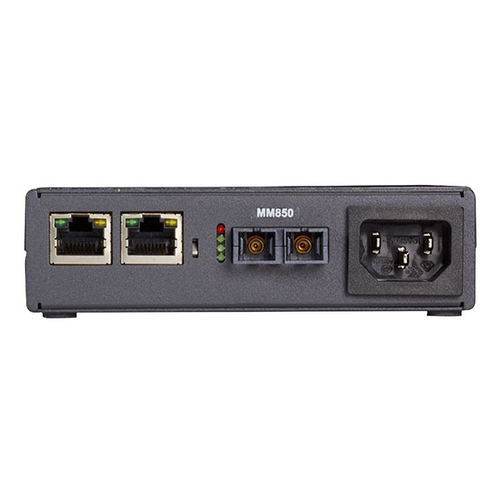

LGC5151A: (2) 10/100/1000 Mbps RJ45, (1) 1000BaseSX MM SC, 550m, Multimode, SC, AC

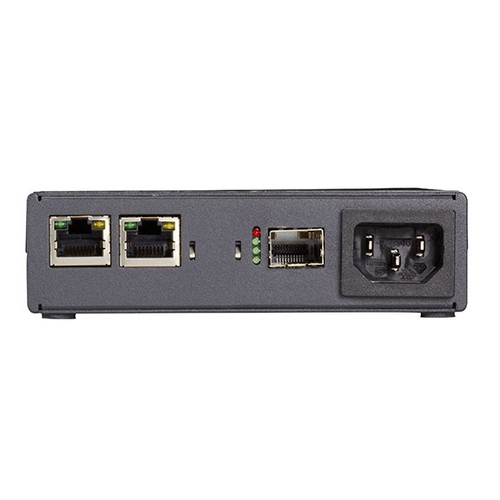

LGC5150A: (2) 10/100/1000 Mbps RJ45, (1) 100/1000M SFP, Distanz gemäss SFP, Mode gemäss SFP, Anschluß gem.  SFP, AC
LGC5150A: (2) 10/100/1000 Mbps RJ45, (1) 100/1000M SFP, Distanz gemäss SFP, Mode gemäss SFP, Anschluß gem.  SFP, AC


Compact 2-Port Gigabit Media Converter


All-in-one unit fits where power packs don't.


  • Compact size means you can install them virtually anywhere. The power supply is internal so there aren't any bulky transformers.
  • Completely plug-and-play. Easy-to-install unmanaged converter.
  • Fiber links provide EMI/RFI immunity in harsh environments.
  • Supports Link Fault Pass-Through (LFPT) for troubleshooting fault conditions on the interfaces.
  • Autonegotiates line speed (10-, 100- or 1000-Mbps).
  • Auto-cross enables you to use either a straight-through or crossover pinned cable.
  • Supports jumbo frames for multimedia applications.
  • Choose from models with an SFP slot, or with fixed SC dual-strand multimode fiber or SC dual-strand single-mode fiber connector.
  • Option with versatile SFP interface supports short- and long-reach fiber optics depending on the SFP used.

  Produkt       Art.Nr.   Stückpreis   Menge
(2) 10/100/1000 Mbps RJ45
(1) 1000BaseSX MM SC
550m
Multimode
SC

AC
  Compact 2-Port Gigabit Media Converter
Compact 2-Port Gigabit Media Converter
  LGC5151A
716,00 €

(1) 1000BaseLX SM SC
10km
Singlemode
SC

AC
  Compact 2-Port Gigabit Media Converter
Compact 2-Port Gigabit Media Converter
  LGC5152A
850,00 €

(1) 100/1000M SFP
Distanz gemäss SFP
Mode gemäss SFP
Anschluß gem. SFP

AC
  Compact 2-Port Gigabit Media Converter
Compact 2-Port Gigabit Media Converter
  LGC5150A
591,00 €


Zubehör

  Produkt     Art.Nr.   Stückpreis   Menge

  SFP, 1250-Mbps, SGMII - 100m, RJ-45, CATx
SFP, 1250-Mbps, SGMII
  LFP443
70,52 €

  SFP, 1250-Mbps, Extended Temp., 850-nm MM LC, 550-m - 850nm MM LC, 550m
SFP, 1250-Mbps, Extended Temp., 850-nm MM LC, 550-m
  LFP411
61,35 €

  SFP, 1250-Mbps, Extended Temp., 1310-nm MM LC, 2-km - 1310nm MM, 2km
SFP, 1250-Mbps, Extended Temp., 1310-nm MM LC, 2-km
  LFP412
92,04 €

  SFP, 1250-Mbps, Extended Temp., 1310-nm SM LC, 10-km - 1310nm SM LC, 10km
SFP, 1250-Mbps, Extended Temp., 1310-nm SM LC, 10-km
  LFP413
67,70 €

  SFP, 1250-Mbps, Extended Temp., 1310-nm SM LC, 30-km - 1310nm SM LC, 30km
SFP, 1250-Mbps, Extended Temp., 1310-nm SM LC, 30-km
  LFP414
148,00 €

  SFP, 1250-Mbps, Extended Temp., SerDes Interface RJ-45, 100-m - SerDes
SFP, 1250-Mbps, Extended Temp., SerDes Interface RJ-45, 100-m
  LFP415
89,37 €

  SFP, 1250-Mbps, Extended Temp., SGMII Interface RJ-45, 100-m - SGMII
SFP, 1250-Mbps, Extended Temp., SGMII Interface RJ-45, 100-m
  LFP416
92,04 €

Montagekits
  Wandmontagebügel für PoE PSE Konverter
Wandmontagebügel für PoE PSE Konverter
  LGC5200-WALL
32,25 €

  SFP, 1250 Mbps, Erweiterte Temperatur, LC Simplex - 10km, LC, Singlemode SSF 1550nm TX/1310nm RX
SFP, 1250 Mbps, Erweiterte Temperatur, LC Simplex
  LFP420
111,00 €

  SFP, 1250 Mbps, Erweiterte Temperatur, LC Simplex - 10km, LC, Singlemode SSF 1310nm TX/1550nm RX
SFP, 1250 Mbps, Erweiterte Temperatur, LC Simplex
  LFP421
99,33 €

  SFP, 1250-Mbps - LC, MM 850nm, 550m
SFP, 1250-Mbps
  LFP441
28,51 €

  SFP, 1250-Mbps - LC, Singlemode 1310nm, 20km
SFP, 1250-Mbps
  LFP442
32,41 €

  SFP, 155-Mbps, Extended Temp., 850-nm MM LC, 2-km - 850nm MM LC, 2km
SFP, 155-Mbps, Extended Temp., 850-nm MM LC, 2-km
  LFP401
64,27 €

  SFP, 155-Mbps, Extended Temp., 1300-nm MM LC, 2-km - 1310nm MM, 2km
SFP, 155-Mbps, Extended Temp., 1300-nm MM LC, 2-km
  LFP402
60,30 €

  SFP, 155-Mbps, Extended Temp., 1310-nm SM LC, 30-km - 1310nm SM LC, 30km
SFP, 155-Mbps, Extended Temp., 1310-nm SM LC, 30-km
  LFP403
73,86 €
